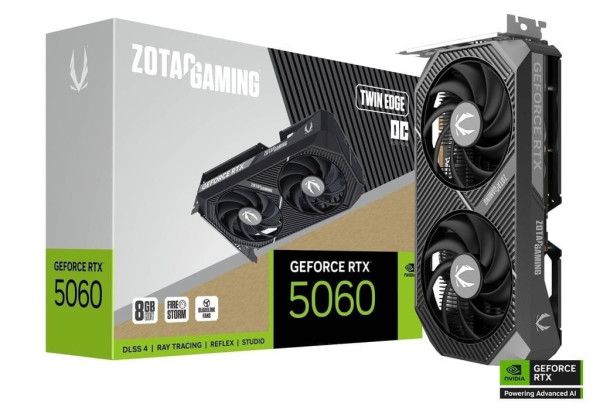

VGA ZOTAC GEFORCE RTX 5060 TWIN EDGE 2 FAN OC 8GB GDDR7

GPU

NVIDIA GeForce RTX 5060 GPU

CUDA cores

3840

Video Memory

8GB GDDR7

Memory Bus

128-bit

Engine Clock

2527 MHz

Memory Clock

28 Gbps

PCI Express

PCI Express 5.0 x8

Display Outputs

3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI® Connector

(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC,

and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP Support

2.3

Multi Display Capability

Quad Display

Recommended Power Supply

600W

Power Consumption

145W

Power Input

1 x 8-pin power input

DirectX

Microsoft DirectX® 12 Ultimate

OpenGL

4.6

Cooling

Air Cooled

Slot Size

2

SLI

No

Supported OS

Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
