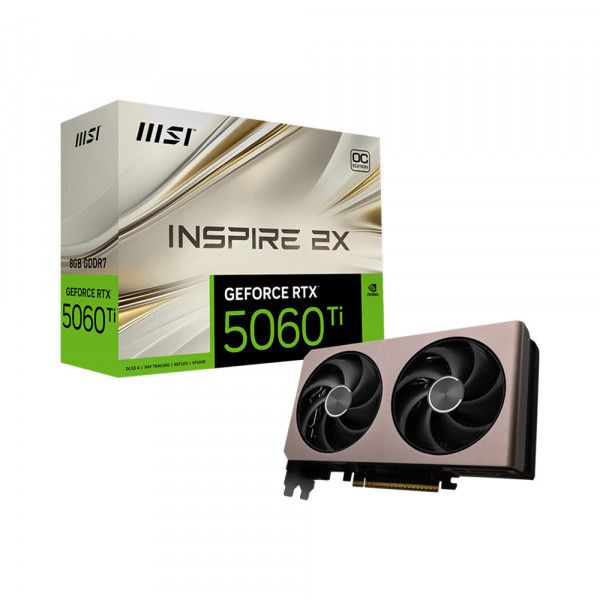

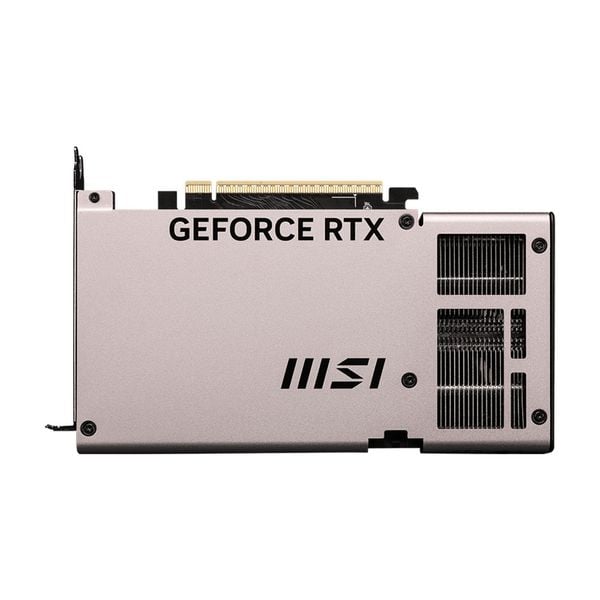

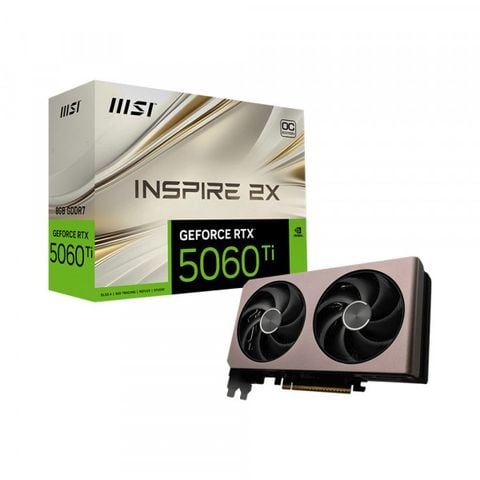

VGA MSI GeForce RTX 5060Ti 8G INSPIRE 2X OC

Model Name

G506T-8I2C

Graphics Processing Unit

NVIDIA® GeForce RTX™ 5060 Ti

Interface

PCI Express Gen 5 x16 (uses x8)

Core Clocks

Extreme Performance: 2632 MHz (MSI Center)
Boost: 2617 MHz

CUDA® CORES

4608 Units

Memory Speed

28 Gbps

Memory

8GB GDDR7

Memory Bus

128-bit

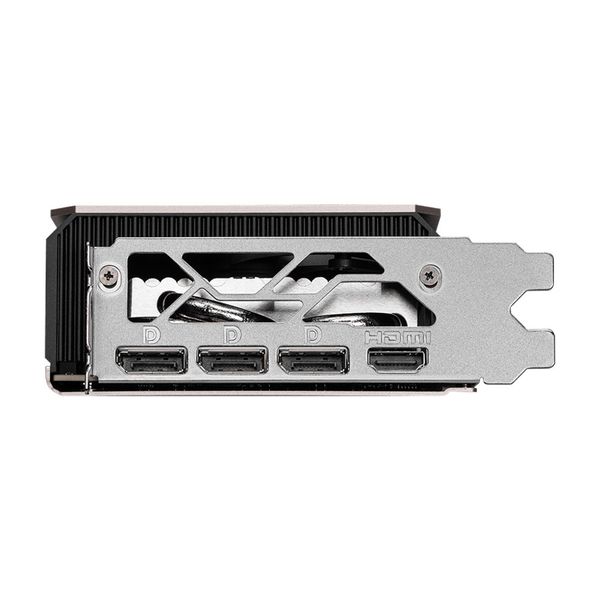

Output

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

180W

Power connectors

16-pin x 1

Recommended PSU

600 W

Card Dimension (mm)

204 x 117 x 50 mm

Weight (Card / Package)

652 g / 940 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

Maximum Displays

Y

Maximum Displays

7680 x 4320
