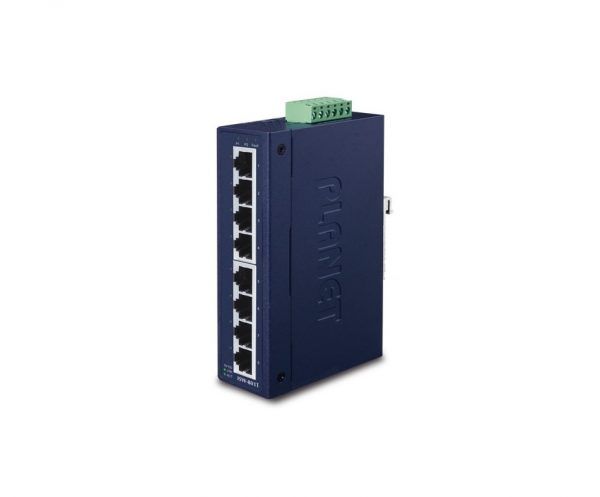

Tính năng chính Switch công nghiệp Planet IGS-801T
8 Port 10/100/1000Mbps giao diện RJ45
Lắp đặt linh hoạt: DIN hoặc gắn tường
Vỏ bảo vệ chuẩn IP30
Nhiệt độ hoạt động từ -40 đến 75 độ C
Nguồn điện: 12~48VDC hoặc 24V AC.
Thông số kỹ thuật
| Hardware |
| 10/100/1000BASE-T Ports | 8 |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 476g |
| Power Requirements | 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption/ Dissipation | 6.72 watts/23BTU |
| Installation | DIN rail kit and wall-mount ear |
| Switching |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K |
| Buffer | 1.5Mbits SRAM packet buffer |
| Flow Control | Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps |
| Jumbo Frame | 9K |
| Network Cables | 10/100/1000BASE-T:
Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.) |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet |
| Stability Testing | IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration) |
| Temperature | Operating: -40~75 degrees C
Storage: -40~75 degrees C |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
