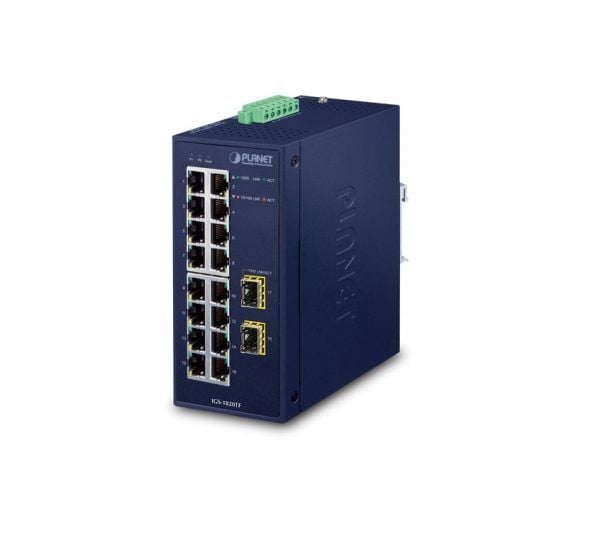

Switch công nghiệp Planet IGS-1820TF, Gigabit, 16 port RJ45 + 2 Uplink
Tính năng chính Switch công nghiệp Planet IGS-1820TF
16 Port 10/100/1000Mbps, giao diện RJ45
2 port Uplink SFP 1000base-X
Lắp đặt linh hoạt: DIN hoặc gắn tường
Vỏ bảo vệ IP30
Nhiệt độ khắc nghiệt từ -40 đến 75 độ C.
Nguồn điện: Dual 12~48V DC, 24V AC.
Thông số kỹ thuật
| Hardware Specifications |
|---|
| Gigabit Ethernet Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Gigabit SFP Slots | 2 1000BASE-SX/LX/BX SFP interfaces |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps (non-blocking) |
| Throughput (packet per second) | 26.79Mpps@ 64 bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4.1Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex
Back pressure for half duplex |
| Jumbo Frame | 10Kbytes |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input
– Pin 1/2 for Power 1
– Pin 3/4 for fault alarm
– Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 745g |
| Power Requirements | Dual 12~48V DC
24V AC |
| Power Consumption | DC input:
Max. 3.4 watts/11.6BTU (System on)
Max. 11.1watts/37.9BTU (Full loading)AC input:
Max. 6 watts/20.5BTU (System on)
Max. 15 watts/51.2BTU (Full loading) |
| Standards Conformance |
|---|
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment |
|---|
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
