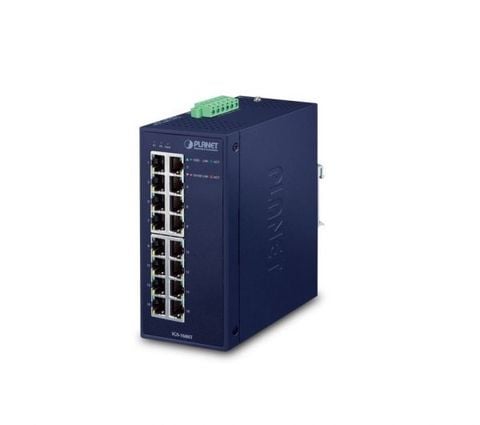

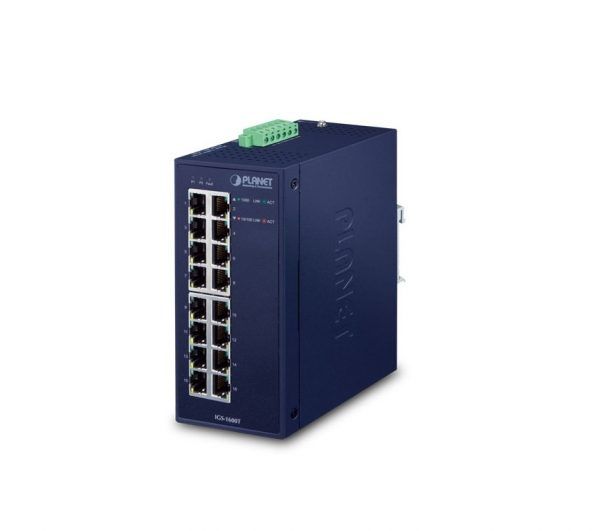

| Gigabit Ethernet Switch Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 32Gbps (non-blocking) |
| Throughput (packet per second) | 23.81Mpps@ 64 bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4.1Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex |
| Jumbo Frame | 10Kbytes |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input
– Pin 1/2 for Power 1
– Pin 3/4 for fault alarm
– Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure.
Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 743g |
| Power Requirements | Dual 12~48V DC
24V AC |
| Power Consumption | DC input:
Max. 3.4 watts/11.6BTU (System on)
Max. 8.7 watts/29.7BTU (Full loading)AC input:
Max. 5 watts/17BTU (System on)
Max. 13.99 watts/47.8BTU (Full loading) |
