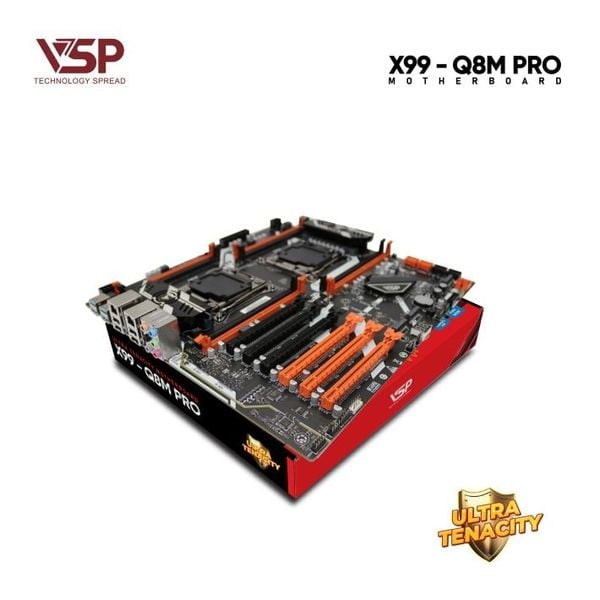

Mainboard VSP X99 - Q8M PRO

Hãng sản xuất

VSP

Mã sản phẩm

X99 - Q8M PRO

Form Factor

E-ATX

Dimension

305mm x 330mm

PCIE

PCIE 5/6 Full-Length Slot: PCIE x 16 3.0 (From CPU 2)
PCIE4 Full-Length Slot: PCIE X 8 3.0 (From CPU 2)
PCIE3 Full-Length Slot: PCIE X 16 3.0 (From CPU 1)
PCIE1/2 Full-Length Slot: PCIE X 8 3.0 (From CPU 1)

Memories Type

8 X DDR4 QUAD/ OCTAL DIMM, 2133/2400MHZ(Max)
Maximum support of 256G (32G X8)

Expansion Interface

3 X M.2 Slot:
(CN1&CN2: PCIE X 4 3.0 From CPU1 1);
(CN3: PCIE X4 3.0/ SATA 3.0 From PCH)

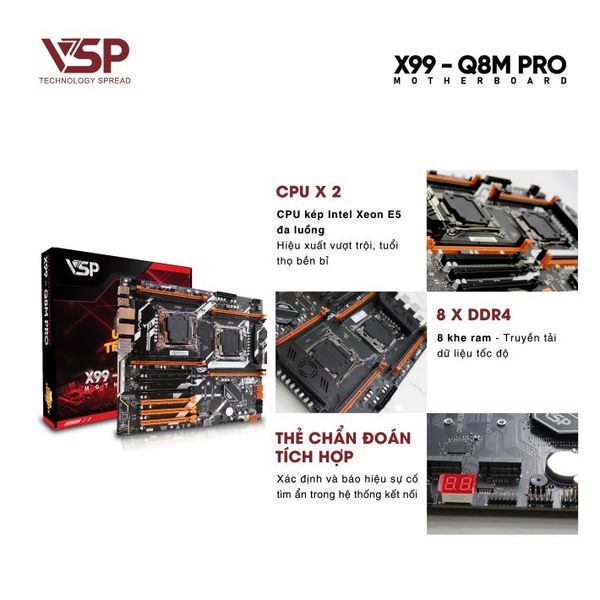

CPU Socket

DUAL-CHANNEL INTEL XEON E5 LGA2011-V3
(TWO CPU MODELS NEED TO BE THE SAME)

SATA

10 x SATA 3.0

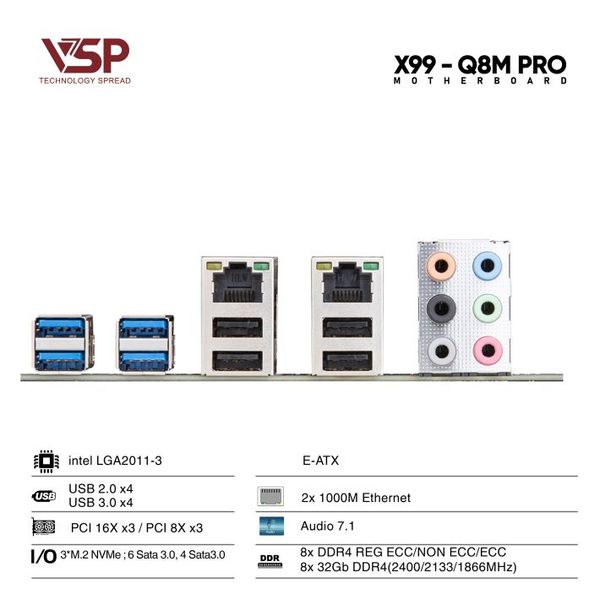

Network Header

2 X RJ45

USB Ports

4 X USB 2.0, 4 X USB 3.0
BUILT-IN PINS:
2 SETS OF USB2.0 PINS (4 USB 2.0 PORTS CAN BE EXPANDED)
1 SET OF USB 3.0 PINS (2 USB3.0 PORTS CAN BE EXPANDED)

Network Card Chip

RTL8125BG/2.5G

Power Input

24 PIN + 2 X 8PIN ATX POWER SOCKET
