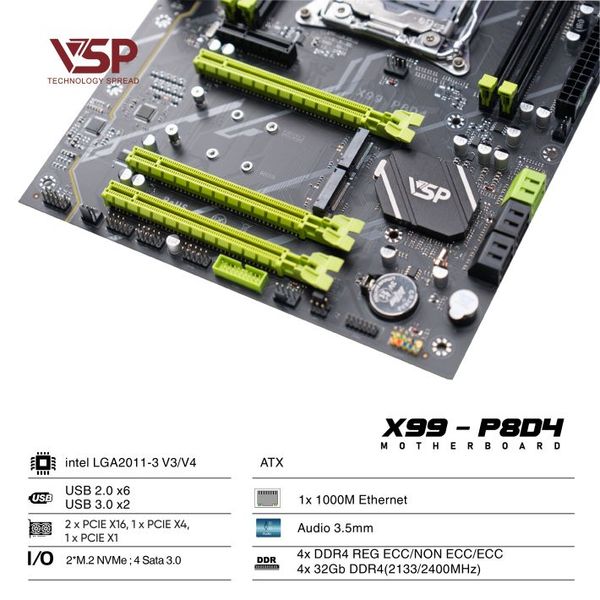

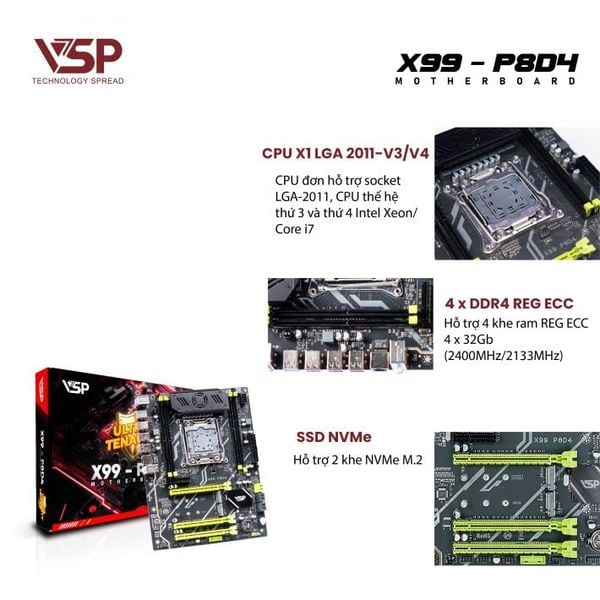

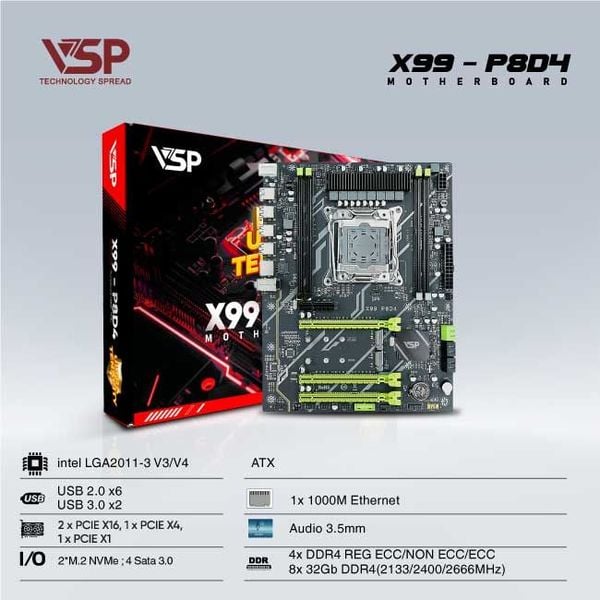

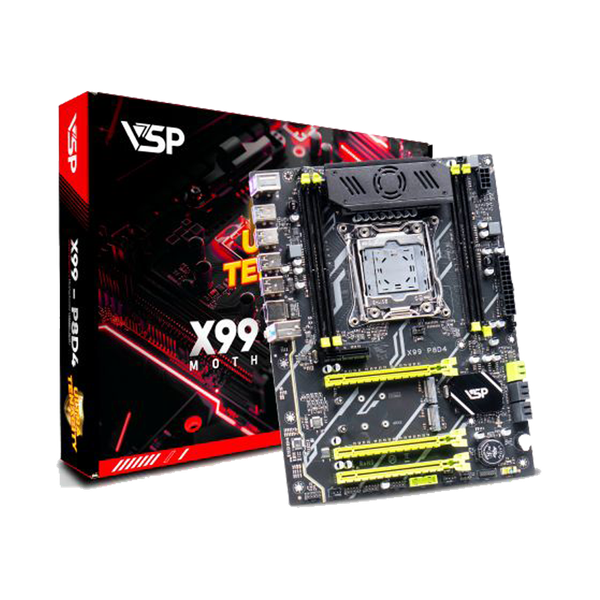

Mainboard VSP X99 - P8D4

Hãng sản xuất

VSP

Mã sản phẩm

X99 - P8D4

Form Factor

ATX (283mm x 216mm)

Expansion Slots

2 x PCIE X16
1 x PCIE X4
1 x PCIE x1

Memory Type

4 x DDR4 REG ECC/ NON ECC/ ECC

Max Memory Capacity

4 x 32G (2400MHz/2133MHz) maximum 128GB

Expansion Interface

2 x M.2 slots
(PCIE 3.0 x4 & SATA 3.0)

CPU Socket

Intel Core i7
Intel Xeon E5 LGA2011-V3/V4

Sound Track

3.1

SATA

4 x SATA 3.0
2 x SATA 2.0

Power Header

1 x 8-pin, 1 x 24-pin Headers

USB Ports

6 x USB 2.0
2 x USB 3.0

LAN - Wifi

Gigabit network card RTL8111H
