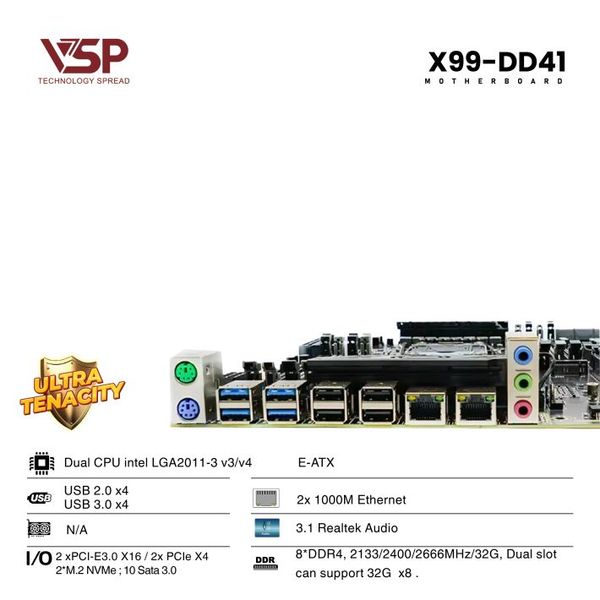

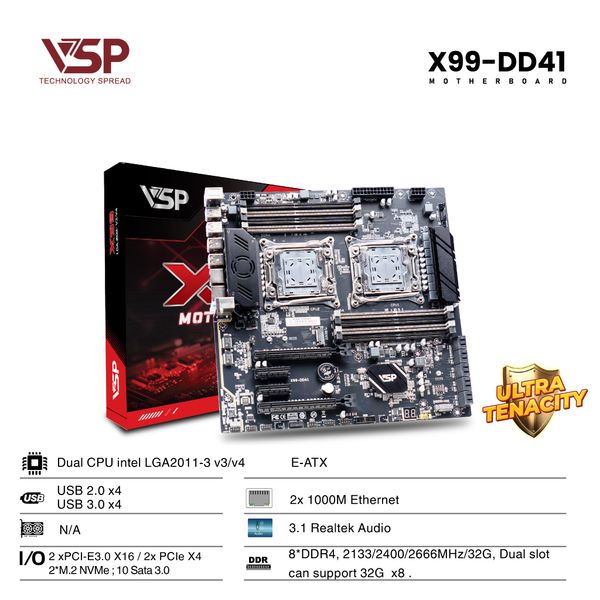

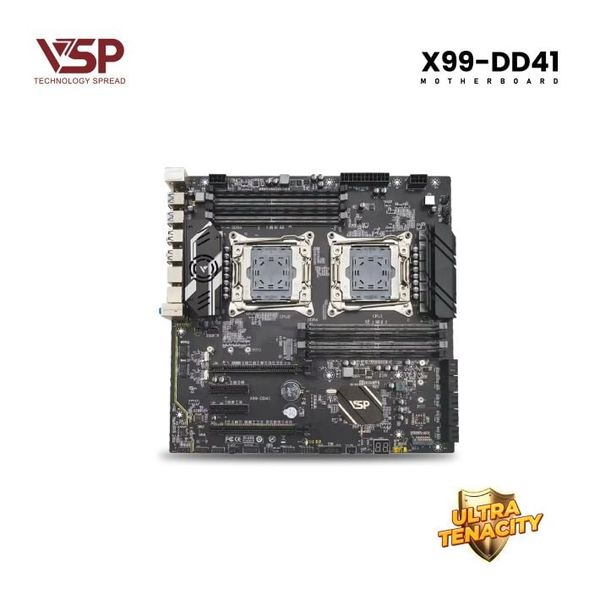

Mainboard VSP X99 - DD41

Hãng sản xuất

VSP

Mã sản phẩm

X99 - DD41

Form Factor

E-ATX

Dimension

290mm x 295mm x6mm

PCIE

4*（2*PCIe X16；2*PCIe X4）

Memory Type

Dual 8*DDR4, 2133/2400/2666MHz can support 32G x8 at most.

CPU Socket

Intel LGA2011-3 v3/v4 series dual CPU

PS/2

1 (1*KB interface and 1*MS interface)

Network Header

2*RJ45 /100/1000Mbs Realtek gigabit chip

Storage

Serial Sata 10*SATA3.0
2*M.2 slot (NVME )

USB Ports

USB2.0 pin x4 (FUSB switch 2USB 2.0)
USB3.0 pin x4 (FUSB switch 2USB 3.0 )

Functional pin

1*FPANEL panel pin; 4* fans

Âm thanh

3.1 Realtek Audio
