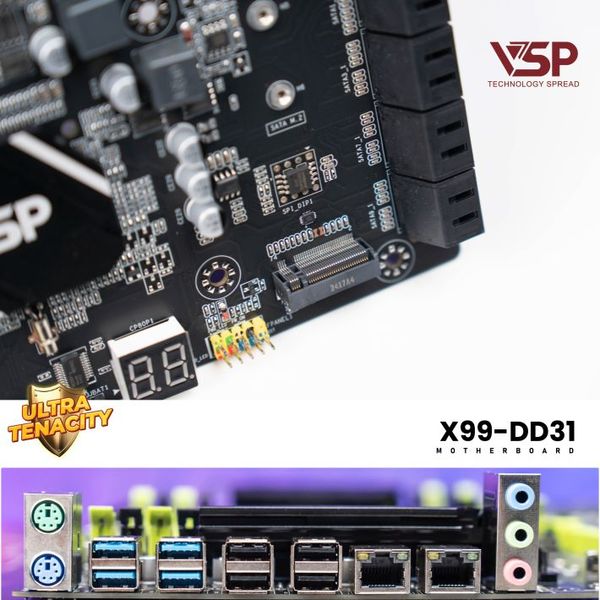

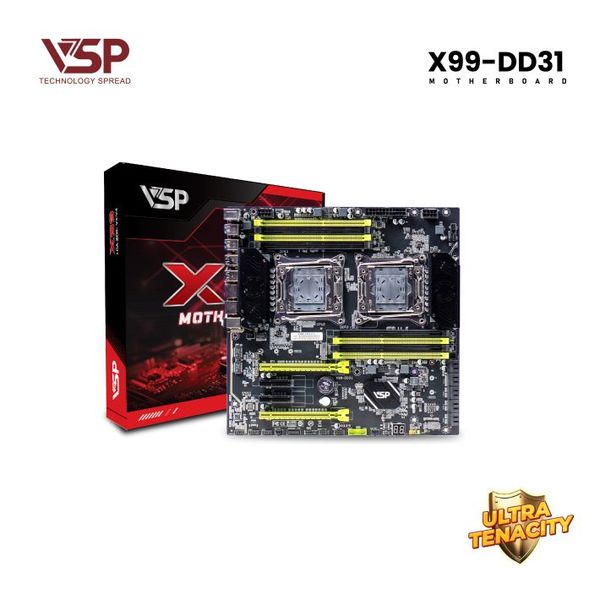

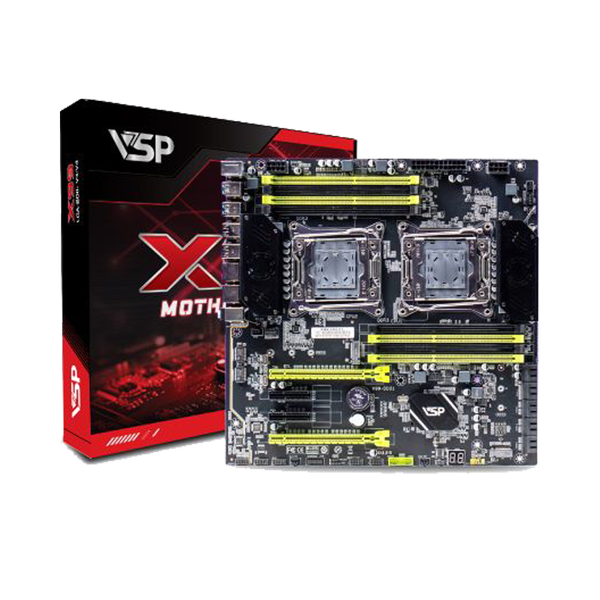

Mainboard VSP X99 - DD31

Hãng sản xuất

VSP

Mã sản phẩm

X99 - DD31

Form Factor

E-ATX

Dimension

290mm x 295mm x6mm

PCIE

2*PCIe X16
2*PCIe X4

Memory Type

Dual 8*DDR3, 1066/1333/1600MHz
Hỗ trợ tối đa 256GB

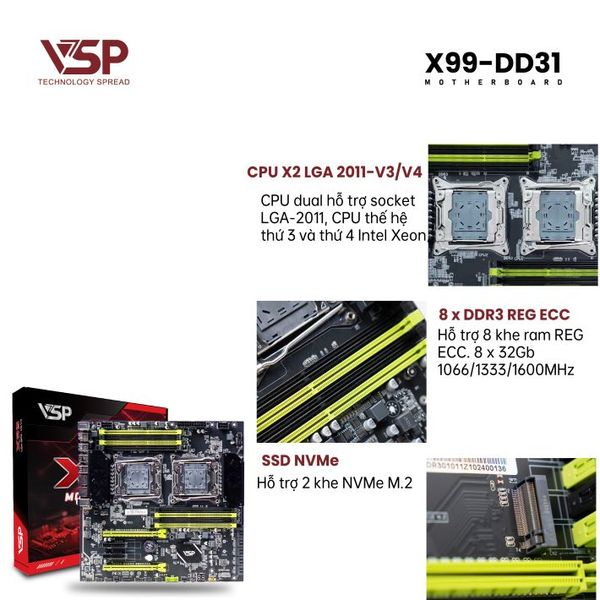

CPU Socket

Intel LGA2011-3 v3/v4 series Dual CPU

PS/2

1 (1*KB interface and 1*MS interface)

Network Header

2*RJ45 /100/1000Mbs Realtek gigabit NICs

Storage

Serial Sata 10*SATA3.0
2*M.2 slot (NVME )

USB Ports

USB2.0 pin x4 (FUSB switch 2USB 2.0)
USB3.0 pin x4 (FUSB switch 2USB 3.0 )

Functional pin

1*FPANEL panel pin; 2* fans

Âm thanh

HD Realtek Audio
