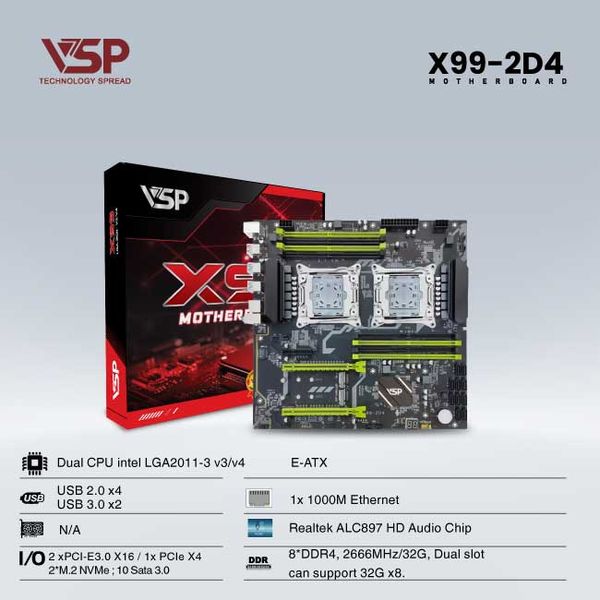

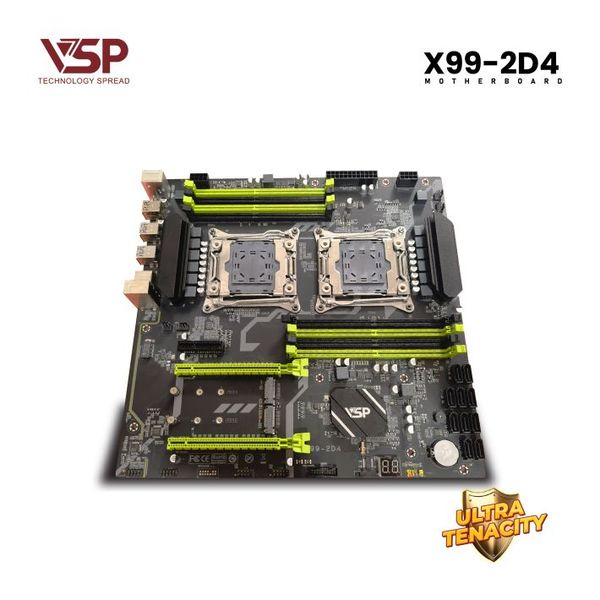

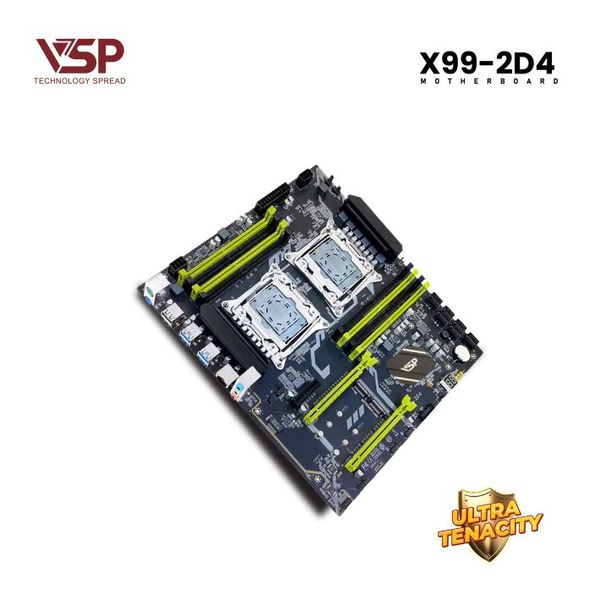

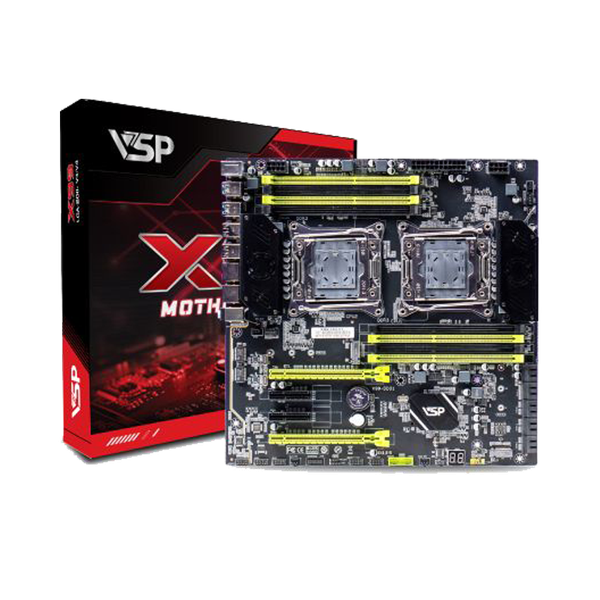

Mainboard VSP X99 - 2D4

Hãng sản xuất

VSP

Mã sản phẩm

X99 - 2D4

Form

E-ATX

Dimension

290 x 295 x 6mm

PCIE

3 (2 * PCIe x16 ; 1 * PCIe x4)

Memory Type

8*DDR4, 2133/2400/2666MHz, Hỗ trợ tối đa 256GB

CPU Socket

Intel LGA2011-3 v3/v4 series CPU

PS/2

1(1 * KB interface and 1 * MS interface)

Network Header

1 * RJ45 /100/1000Mbs Realtek Gigabit chip

Storage

Serial Sata 10 * SATA3.0
2 * M.2 slot (NVME protocol)

USB Ports

USB 2.0 pin x4 (FUSB switch 2USB 2.0)
USB 3.0 pin x2 (FUSB switch 2USB 3.0)

Functional pin

1 * FPANEL panel pin; 4 * fans

Âm thanh

1 (Mic-in, Line-out, Line-in)
Realtek ALC897 HD Audio chip
