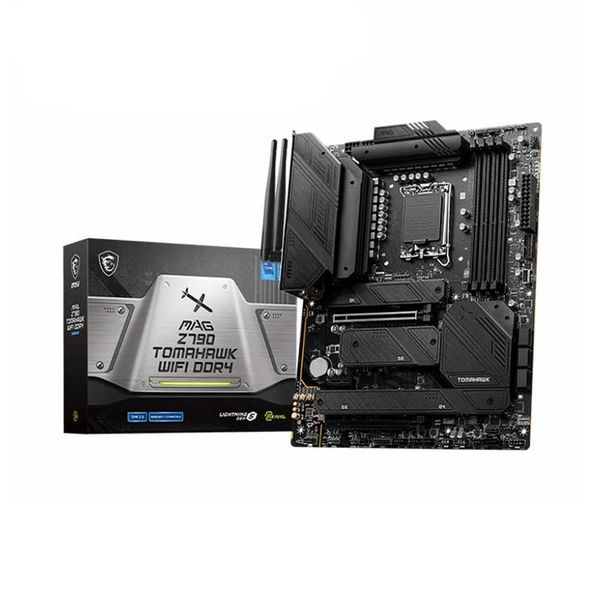

Mainboard MSI Z790 Tomahawk Wifi DDR4 NK

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

MAG Z790 Tomahawk Wifi DDR4

CPU hỗ trợ

Intel

Chipset

INTEL Z790

RAM hỗ trợ

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266

4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Khe cắm mở rộng

2x PCI-E x16 slot

1x PCI-E x1 slot

Ổ cứng hỗ trợ

4x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

7x SATA 6G port

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0

2x USB 3.2 Gen1 Type A

1x USB 3.2 Gen2 Type C

BACK PANEL

DisplayPort 1.4

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port,

HD Audio Connectors

HDMI™ 2.1 Port

Clear CMOS Button

Flash BIOS Button

USB 3.2 Gen 2 10Gbps Type-C

USB 3.2 Gen 2x2 20Gbps Type-C

Wi-Fi / Bluetooth Antenna

Optical S/PDIF OUT

LAN / Wireless

Intel^® 2.5Gbps LAN

Intel^® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA

Kích cỡ

ATX

243.84mmx304.8mm
