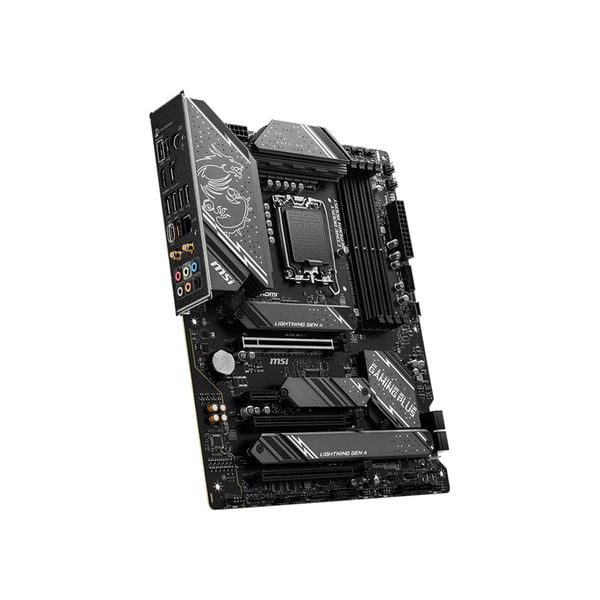

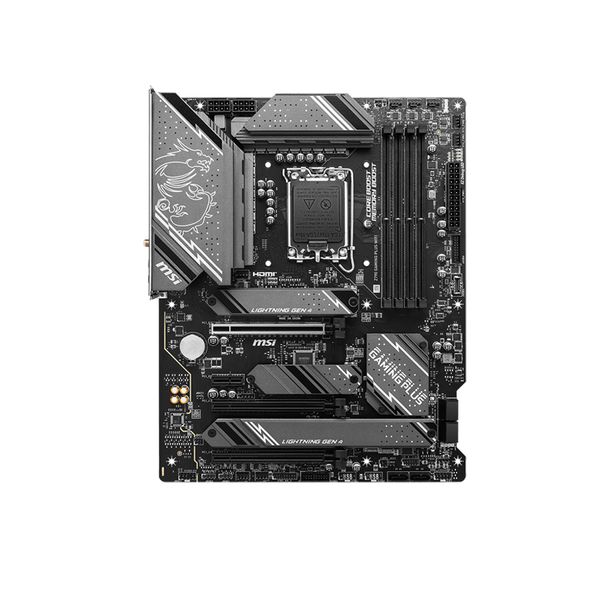

Mainboard MSI Z790 GAMING PLUS WIFI DDR5

Sản phẩm

• Bo mạch chủ

Tên Hãng

• MSI

Model

• Z790 GAMING PLUS WIFI

CPU hỗ trợ

• Intel

Chipset

• INTEL Z790

RAM hỗ trợ

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Khe cắm mở rộng

• 3x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 6x SATA 6G

Cổng kết nối (Internal)

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 1x USB4 card connector (JTBT_U4_1, supports RTD3)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

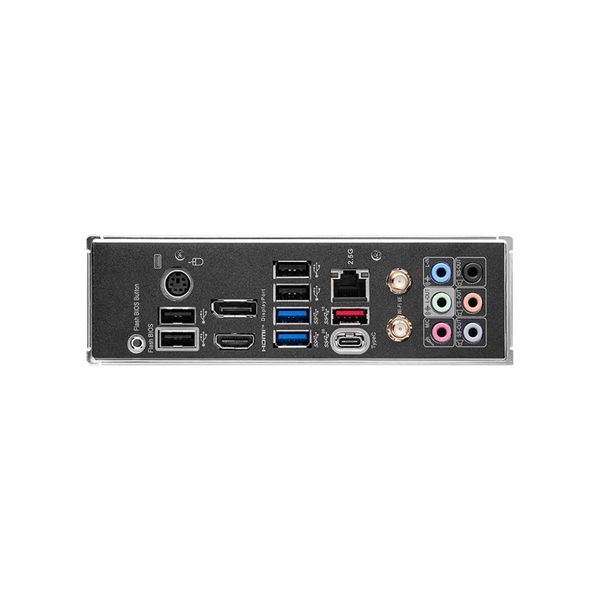

BACK PANEL

• Keyboard / Mouse

• DisplayPort

• USB 2.0

• 2.5G LAN Port

• Wi-Fi / Bluetooth Antenna

• Audio Connectors

• Flash BIOS Button

• USB 2.0

• HDMI™ 2.1 Port

• USB 3.2 Gen 1 5Gbps Type-A

• USB 3.2 Gen 2x2 20Gbps Type-C

• USB 3.2 Gen 2 10Gbps Type-A

LAN / Wireless

• Intel^® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.3, FIPS, FISMA

Kích cỡ

• ATX
• 243.84mmx304.8mm
