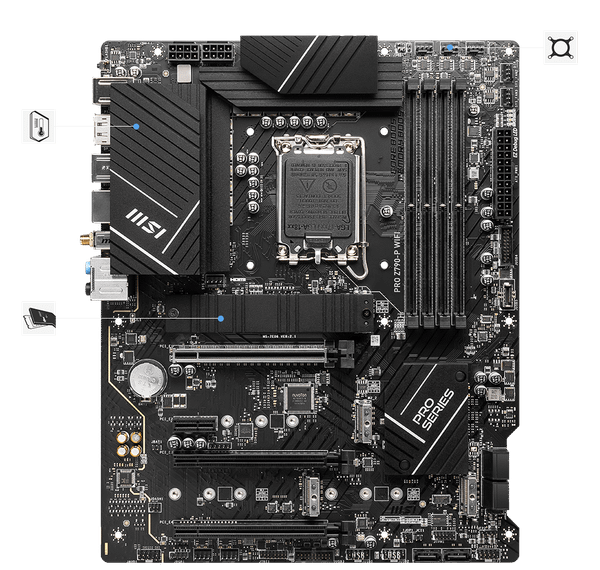

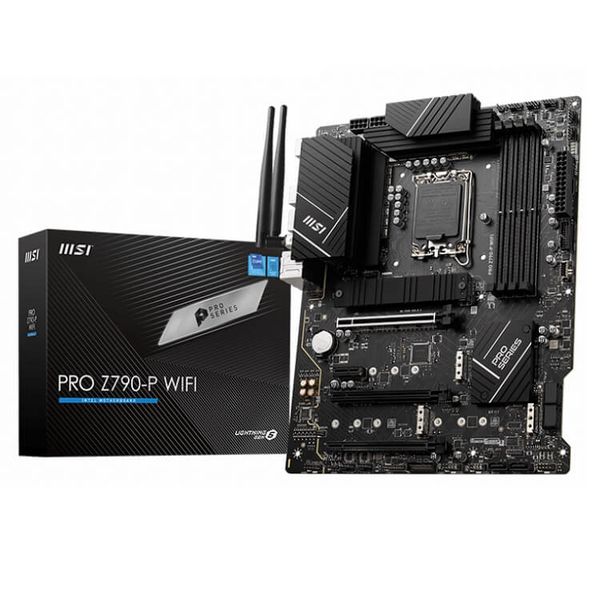

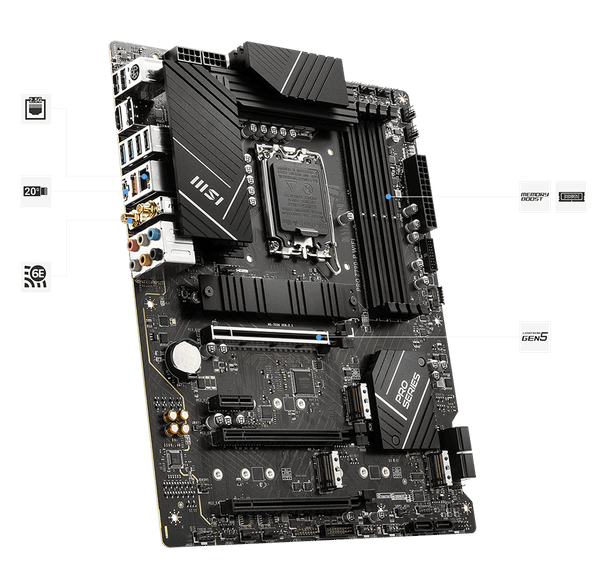

Mainboard MSI PRO Z790-P WIFI DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

PRO Z790-P WIFI

CPU hỗ trợ

Intel

Chipset

INTEL Z790

RAM hỗ trợ

4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)

/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)

/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Khe cắm mở rộng

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

BACK PANEL

Keyboard / Mouse

DisplayPort

USB 2.0

2.5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

USB 2.0

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2x2 20Gbps (Type-C)

USB 3.2 Gen 2 10Gbps (Type-A)

LAN / Wireless

Intel^® 2.5Gbps LAN

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth^® 5.3, FIPS, FISMA

Kích cỡ

ATX
243.84mmx304.8mm
