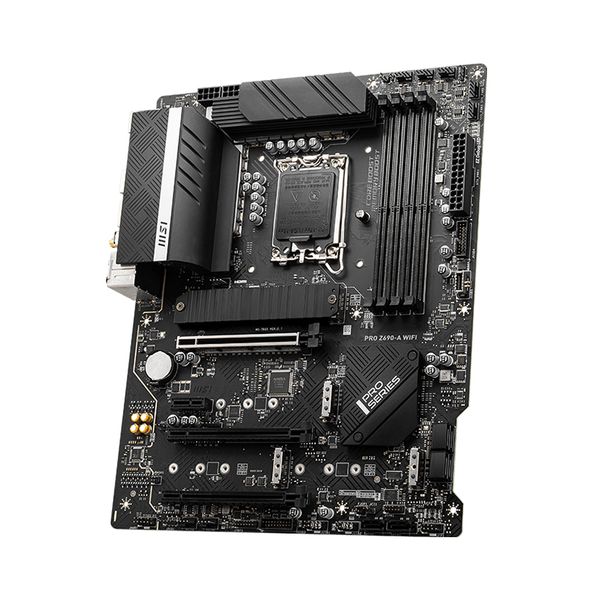

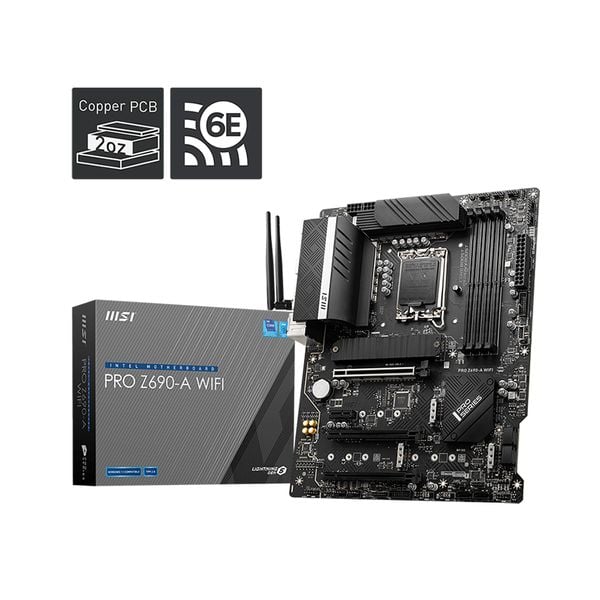

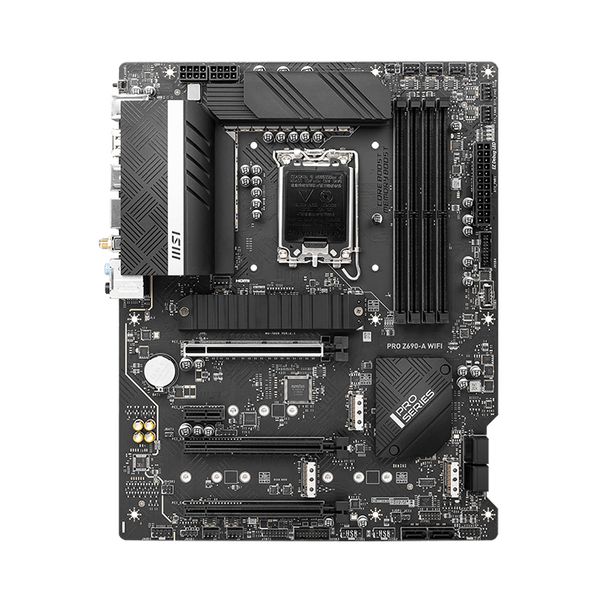

Mainboard MSI Pro Z690-A wifi (Intel Z690, Socket 1700, ATX, 4 khe ram DDR5)

MSI

Z690-A WiFi

ATX

Intel® Z690 Chipset

4

5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

128GB

Dual chanel

3x PCIe x16 slots

1x PCIe 3.0

6x SATA 6Gb/s ports

4x M.2 slots

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

1x Intel® I225-V 2.5Gbps LAN

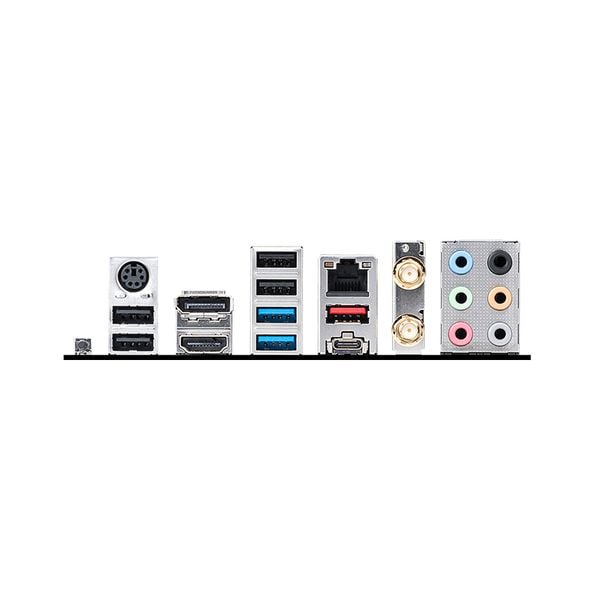

Keyboard / Mouse

DisplayPort

USB 2.0

LAN port

WIFI / Bluetooth

Audio connector

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

USB 3.2 Gen 2 10Gbps Type-A

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)

6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)

4x USB 2.0 Type-A ports on the back panel

4x USB 2.0 ports are available through the internal USB connectors

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

30.5 cm x 24.4 cm

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connector
