Sản phẩm | Bo mạch chủ |
Tên Hãng | MSI |

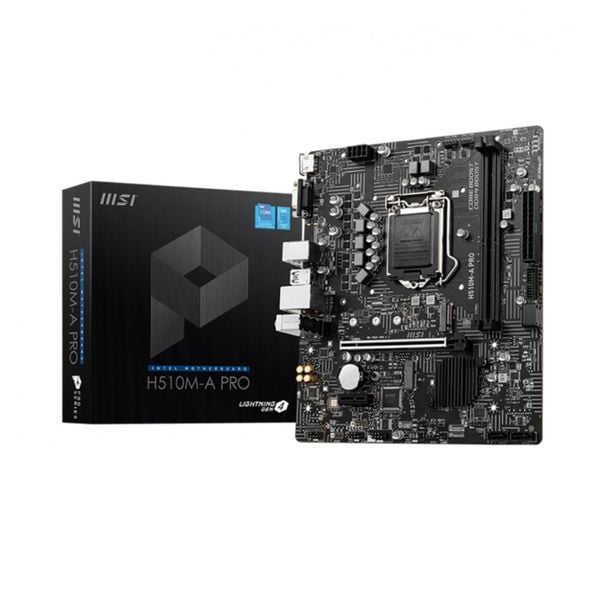

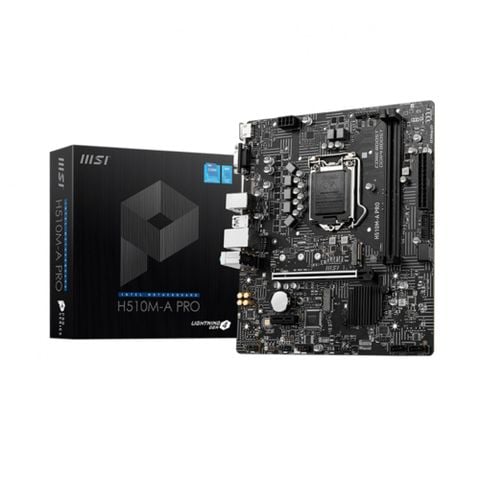

Model | H510M-A PRO |
CPU hỗ trợ | Intel |
Chipset | H510 |
RAM hỗ trợ | 2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP) |
Khe cắm mở rộng | 1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only(M2_2) |
Ổ cứng hỗ trợ | 4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From H510 Chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices |
Cổng kết nối (Internal) | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector |
Cổng kết nối (Back Panel) | 1 x HDMI
1 x VGA
1 x PS2 Mouse / Keyboard
1 x LAN port
1 x Audio connector
4 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps Type-A |
LAN / Wireless | 1x Intel® I219V 1Gbps LAN controller |
Kích cỡ | mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
