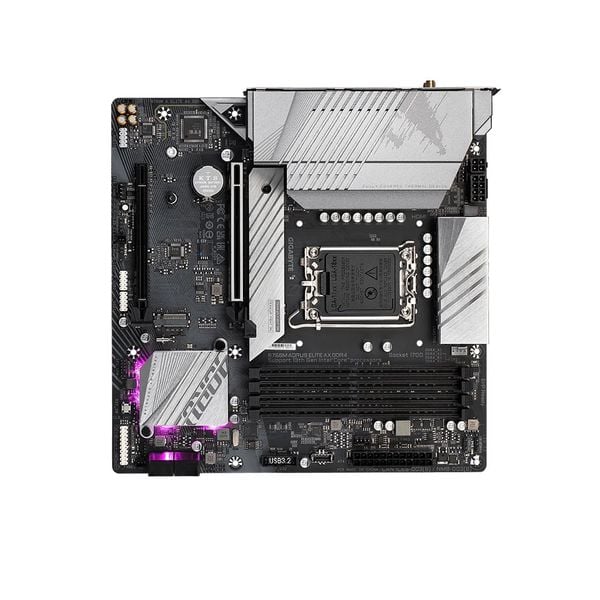

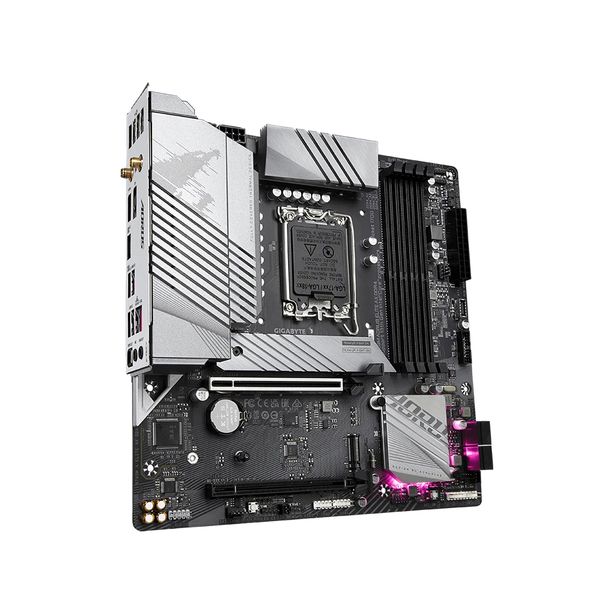

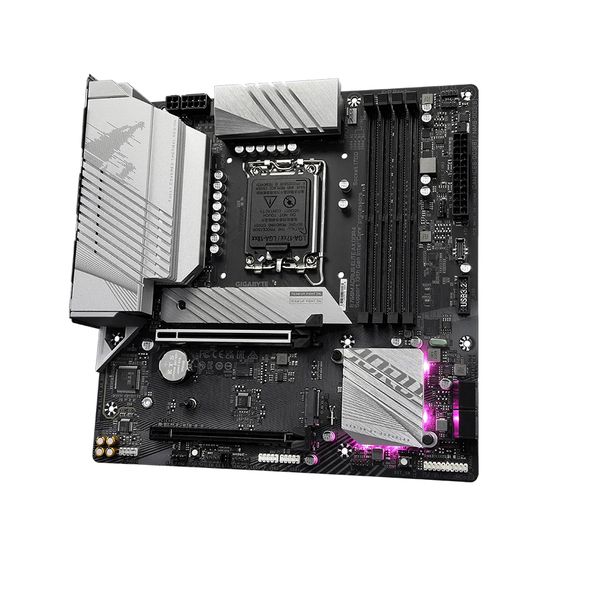

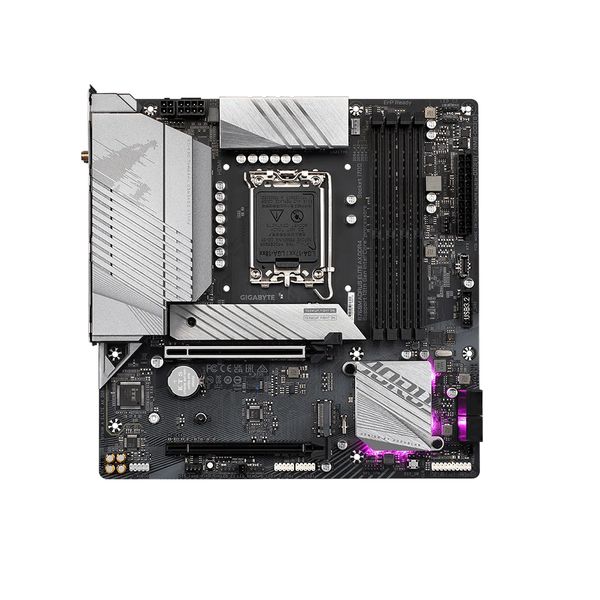

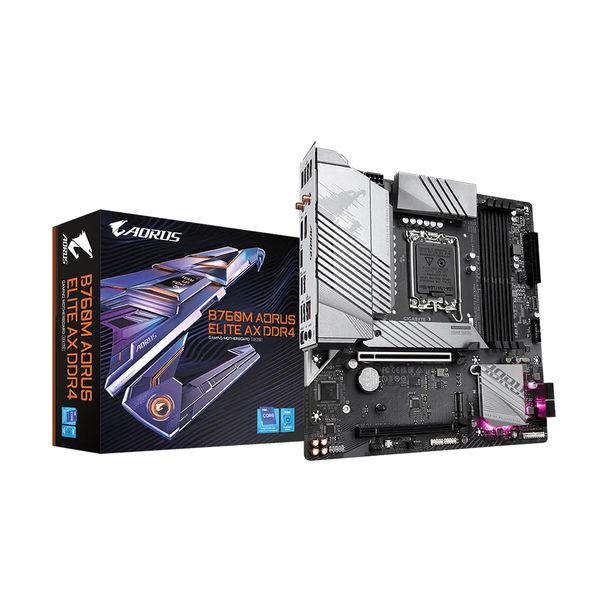

Mainboard Gigabyte B760M Aorus ELITE AX DDR4 (Wifi+Bluetooth)

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B760M AORUS ELITE AX DDR4

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

1. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Support for AMD CrossFireX™ technology

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x 4-pin ATX 12V power connector

4. 1 x CPU fan header

5. 3 x system fan headers

6. 2 x addressable LED strip headers

7. 2 x RGB LED strip headers

8. 2 x M.2 Socket 3 connectors

9. 4 x SATA 6Gb/s connectors

10. 1 x front panel header

11. 1 x front panel audio header

12. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support

13. 1 x USB 3.2 Gen 1 header

14. 2 x USB 2.0/1.1 headers

15. 2 x Thunderbolt™ add-in card connectors

16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

17. 1 x Q-Flash Plus button

18. 1 x reset button

19. 1 x reset jumper

20. 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1. 2 x SMA antenna connectors (2T2R)

2. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

3. 1 x USB 3.2 Gen 2 Type-A port (red)

4. 3 x USB 3.2 Gen 1 ports

5. 4 x USB 2.0/1.1 ports

6. 1 x HDMI port

7. 1 x DisplayPort

8. 1 x RJ-45 port

9. 1 x optical S/PDIF Out connector

10. 2 x audio jacks

LAN / Wireless

1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

2. Intel^® Wi-Fi 6E AX211 (For PCB rev. 1.0 / 1.1)

   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

   2. BLUETOOTH 5.3

   3. Support for 11ax 160MHz wireless standard

   Realtek^® Wi-Fi 6E RTL8852CE (For PCB rev. 1.2)

   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

   2. BLUETOOTH 5.3

   3. Support for 11ax 160MHz wireless standard

Kích cỡ

1. Micro ATX Form Factor; 24.4cm x 24.4cm
