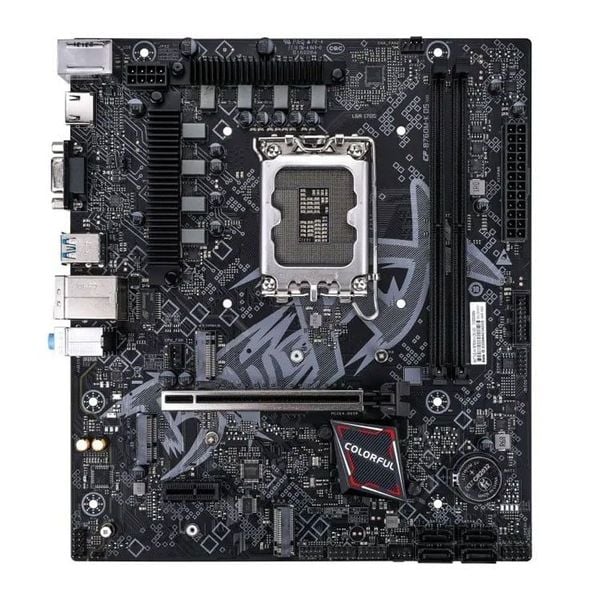

| Model | BATTLE-AX B760M-K D5 V20 |
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor |
| (* Please visit www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) |
| - Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory |
| - Intel is supported ® Extreme Memory Profile (XMP) memory technology |
| - supports dual channel memory technology |
| (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 6 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices |
| - M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) |
| - M.2_2 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
| (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) |

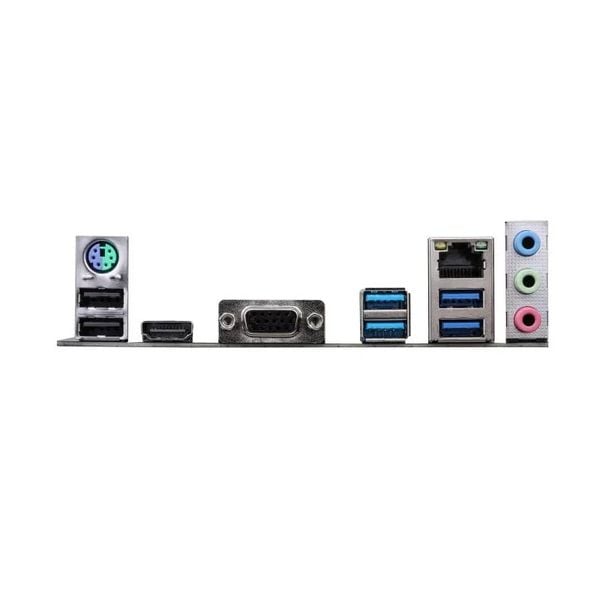

| Board I/O | Rear I/O: |
| - 2×USB 2.0 interfaces |
| - 4×USB 3.2 Gen 1 Type-A interfaces |
| - 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |
| - 1×VGA interface |
| - 1×PS.2 interface |
| - 1×gigabit network interface |
| - 3×audio interfaces(audio input/audio output/microphone) |
| On board: |
| - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces |
| - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces |
| - 1×CPU fan pin |
| - 2×System fan pins |
| - 1×Front audio pin |
| - 1×Front panel pin |
| - 1×Spraker pin |
| - 1×COM port pin |
| - 1×ME write protection jumper |
| - 1×Clear CMOS jumper |
| - 1×BIOS burner pin |
| - 1×POST card pin |
| - 1×Wake-up control jumper |
