| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |

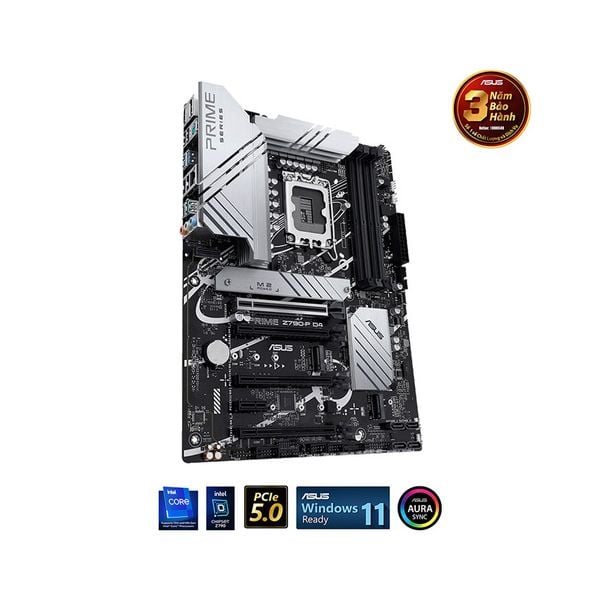

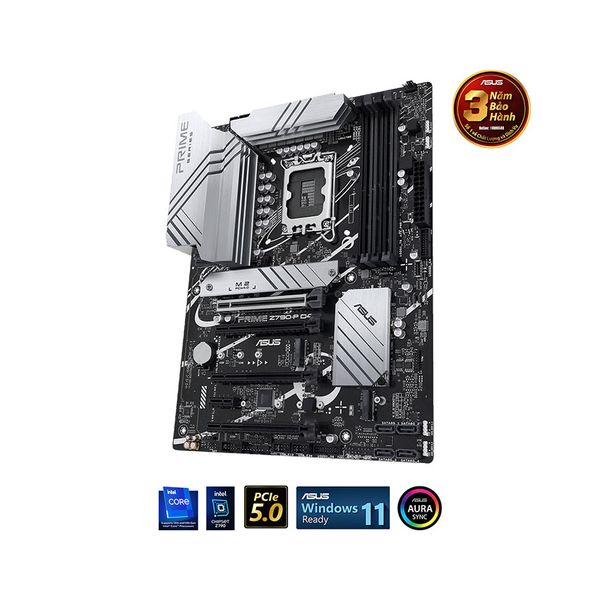

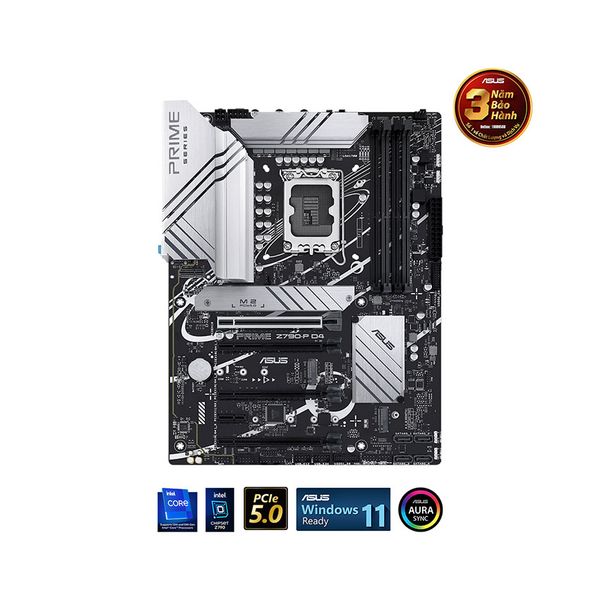

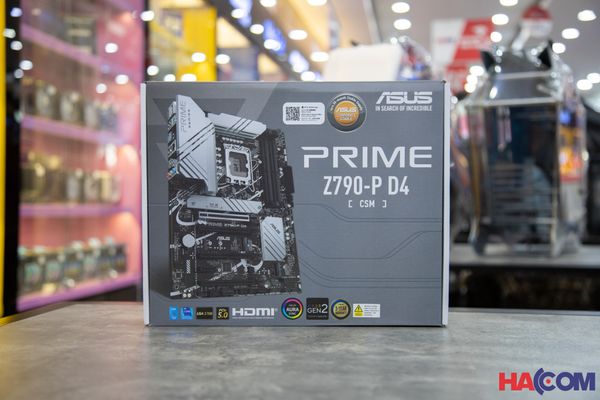

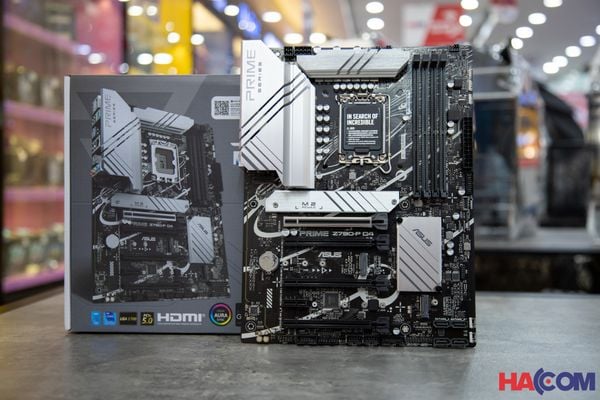

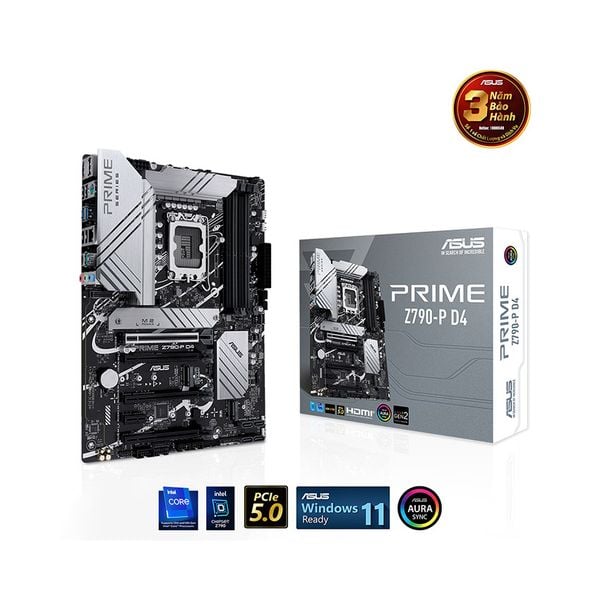

| Model | PRIME Z790-P WIFI D4-CSM |
| CPU hỗ trợ | Intel |
| Chipset | Intel Z790 Chipset |
| RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC) |
| 5000(OC)/4800(OC)/4700(OC)/4600(OC) |
| 4500(OC)/4400(OC)/4266(OC) |
| 4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC) |
| 3333(OC)/3200/3000/2933/2800 2666/2400/2133 Non-ECC, Un-buffered Memory |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot |
| Intel® Z790 Chipset |
| 3 x PCIe 4.0 x16 slots (support x4 mode) |
| 1 x PCIe 3.0 x1 slot |
| Ổ cứng hỗ trợ | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| Intel® Z790 Chipset |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| USB | Rear USB (Total 8 ports) |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
| * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth |
| Cổng kết nối (Internal | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 3 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| 1 x 4-pin +12V Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Aura RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 20-5pin System Panel header |
| 1 x Thunderbolt™ (USB4®) Header |
| Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI® port |
| 1 x Wi-Fi Module |
| 1 x Realtek 2.5Gb Ethernet port |
| 3 x Audio jacks |
| 1 x PS/2 Keyboard/Mouse combo port |
| LAN / Wireless | Vertical M.2 slot only (Key E, CNVi & PCIe)* |
| *Wi-Fi module is sold separately. |
| 1 x Intel® 2.5Gb Ethernet |

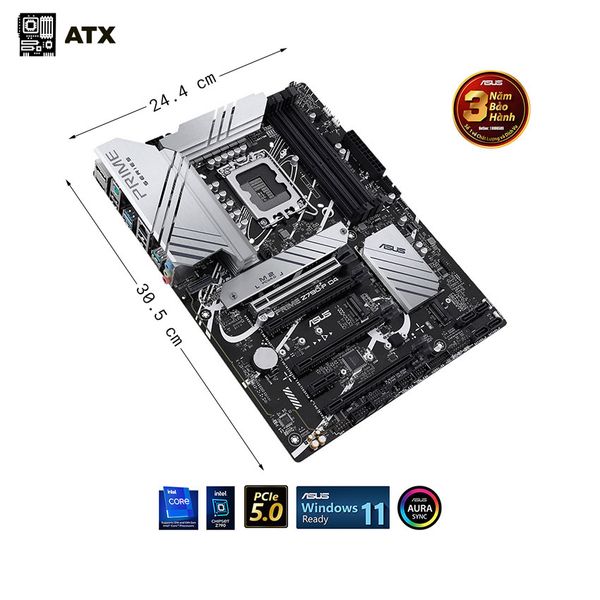

| Kích cỡ | ATX Form Factor |
| 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
