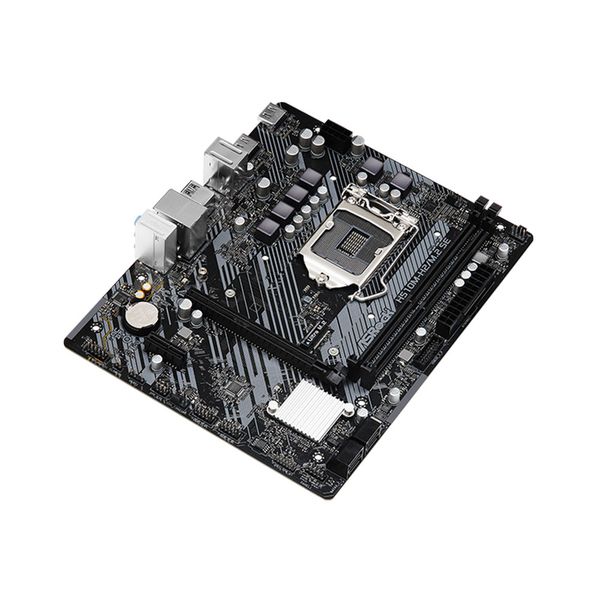

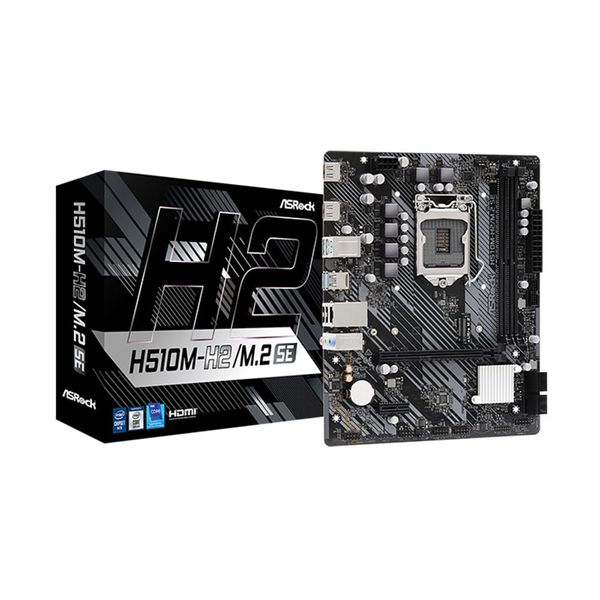

Sản phẩm | Bo mạch chủ |
Tên Hãng | ASROCK |
CPU hỗ trợ | Intel |
Chipset | Intel® H470 |
RAM hỗ trợ | 2 x DIMM SLOTS, tối đa 64GB DDR4
Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode) |
Khe cắm mở rộng | Intel® 11th Gen & 10th Gen Processors:
- 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel® H470 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2) |
Ổ cứng hỗ trợ | Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors |
Cổng kết nối (Internal) | 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
Cổng kết nối (Back Panel) | - 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 2.0 Ports
- 4 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone |
LAN / Wireless | - Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H |
Kích cỡ | Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm |
