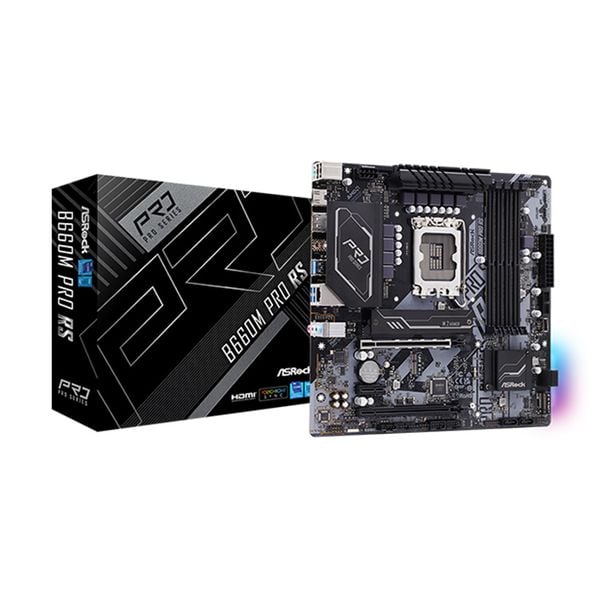

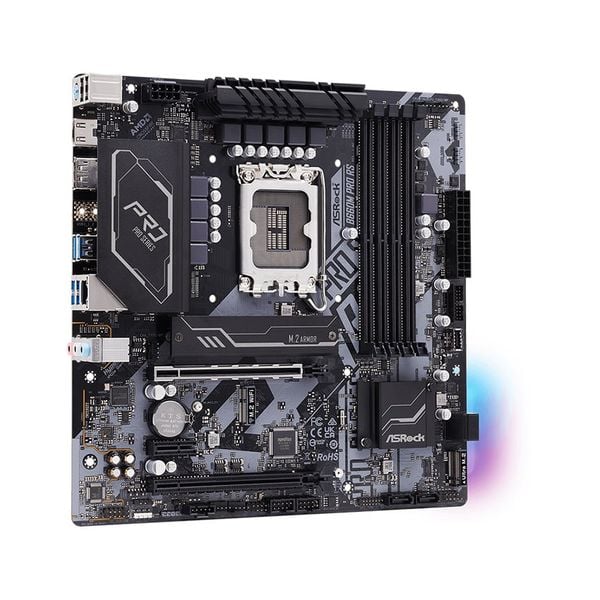

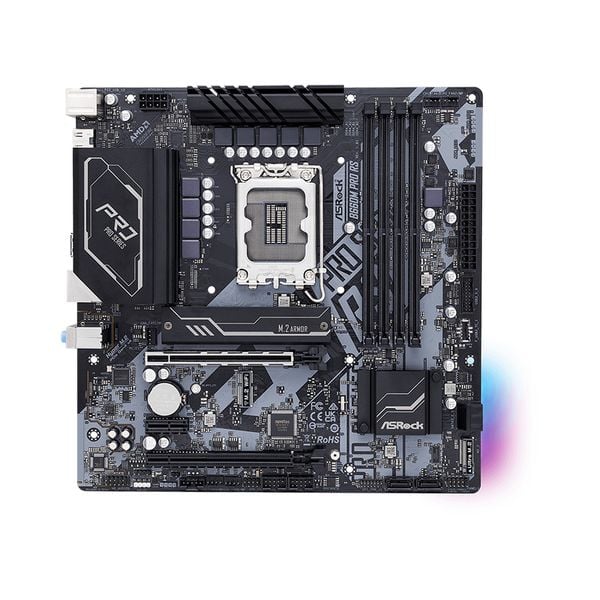

Mainboard ASROCK B660M PRO RS (Intel B660, Socket 1700, M-ATX, 4 khe RAM DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

B660M Pro RS DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel^® Extreme Memory Profile (XMP) 2.0

Khe cắm mở rộng

- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
- 1 x PCIe Gen3x1 Slot
- Supports AMD CrossFire™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT)

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s Connectors** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type
