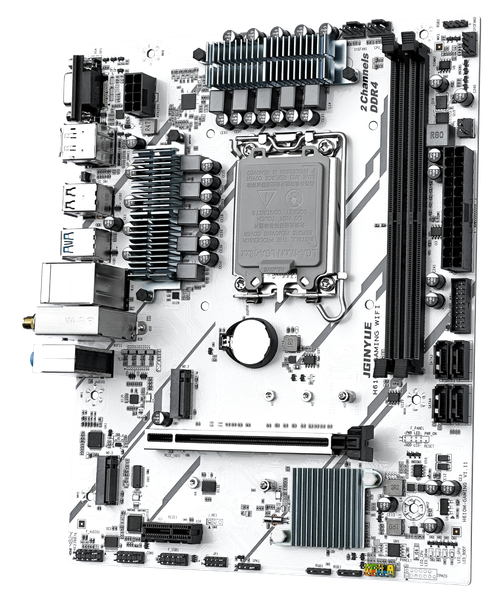

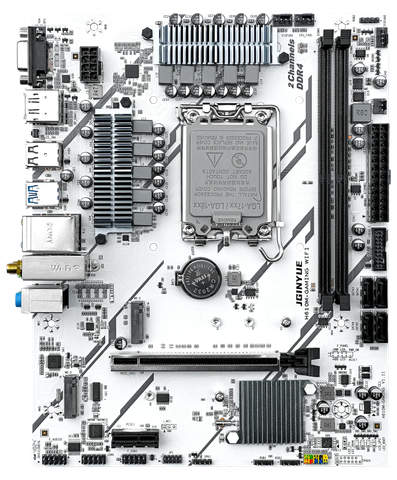

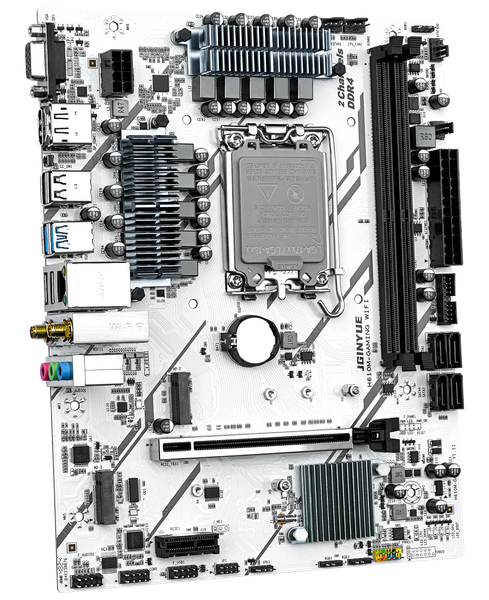

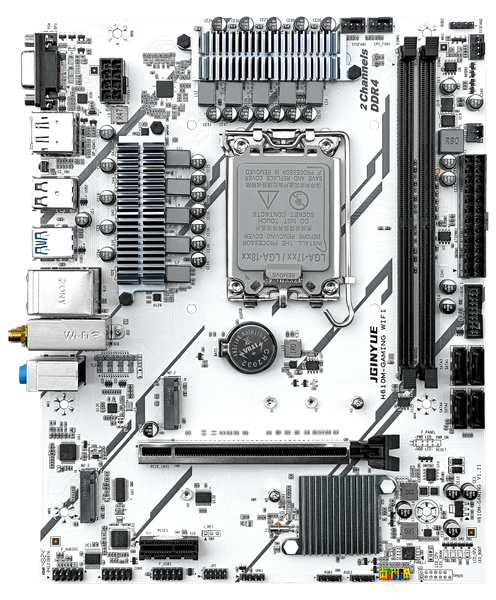

Motherboard model | H610M-GAMING WIFI |
Chipset | intel H610 |
CPU pins | Supports Intel's 12th, 13th, and 14th generation LGA1700 platform processors |
Memory slot | 2 DDR4 memory slots |
Memory capacity | Maximum support for 64G |
Memory standard | Supports dual channel DDR4 frequencies of 3200/3000/2933/2800/2666/2400/2133MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations) |
Display interface | 1 HDMI interface, 1 DP interface, 1 VGA interface |
Storage interface | 4 SATA3.0 6Gbps interfaces; 2 M.2 nvme protocol 3.0 interfaces (1 X4 rate, 1 X2 rate) |
USB interface | Two USB3.2 and four USB2.0 are placed at the back; Front 1 USB 3.2, 1 USB 2.0 |
Expansion Slots | 1 PCI Express x16 4.0 slot; 1 PCI Express x1 |
Wireless interface | 1 WiFi interface board mounted 9560NGW module |
Onboard sound card | Realtek ALC897 |
Onboard network card | Realtek 8111H |
Power supply socket | 24Pin+8Pin |
Fan pin | Two 4-needle needles; Two 3-pin needles |
Number of power supply phases | 10 phase power supply |
RGB pin | Two 5v3 pin RGB interfaces |
Main board size | 24cmx19cm; M-ATX |
Support system | Windows10；Windows11 |
