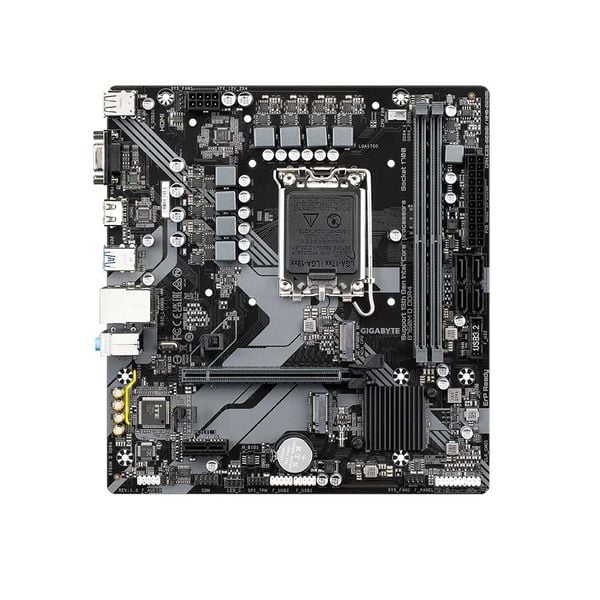

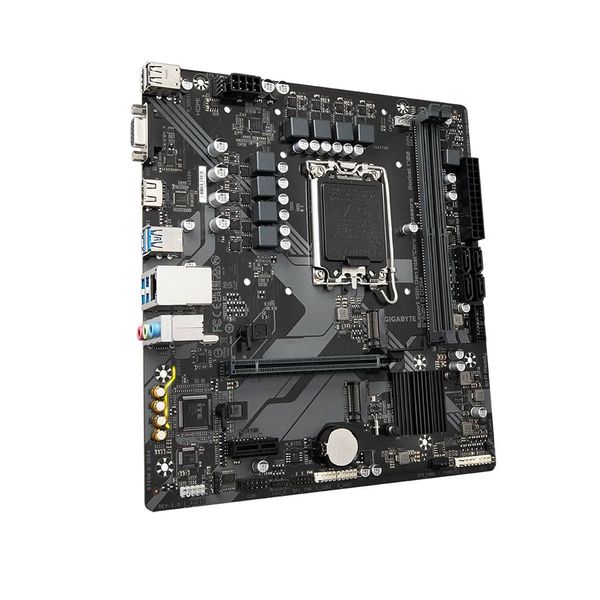

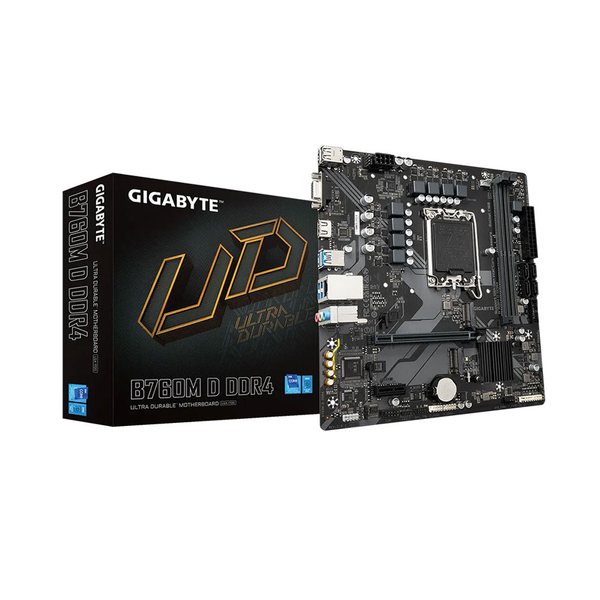

Main Giagabyte B760M-D DDR4

Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

Gigabyte

Model

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

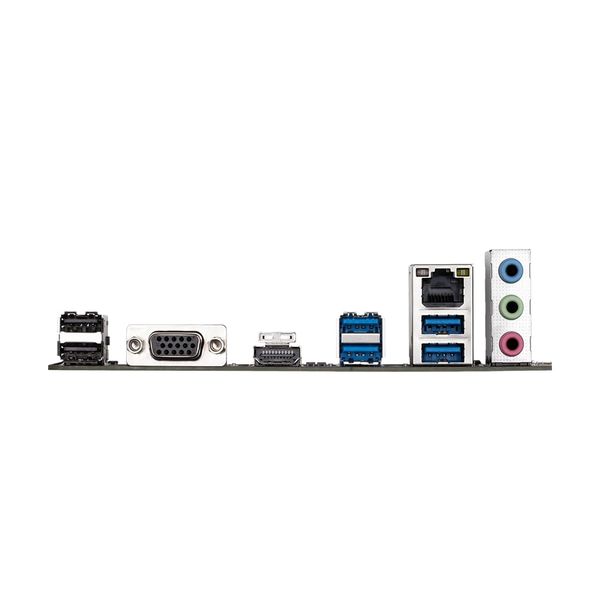

Cổng kết nối (Back Panel)

2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 23.0cm x 21.5cm
