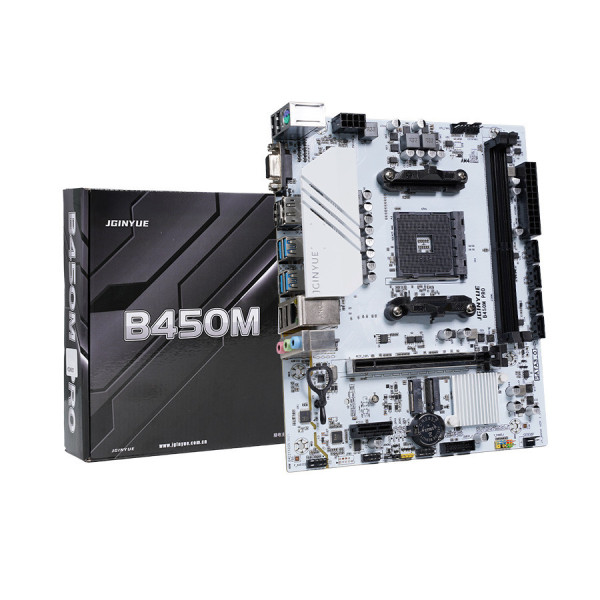

Bo mạch chủ JGINYUE B450M PRO ARGB

Motherboard model	B450M PRO ARGB
Chipset	AMD B450 chipset
CPU pins	Supports AMD AM4 1000/2000/3000/4000/5000 series processors
Memory slot	2xDDR4 memory slots
Memory capacity	Maximum support 32GB
Memory frequency	Dual channel 2133/2400/2666/3000/3200/3600/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
Display interface	1xHDMI，1xDP，1xVGA
Storage interface	4xSATA3.0 6Gbps； 1xM.2 nvme protocol 3.0 interface
USB interface	Rear 4xUSB 3.0, 4xUSB 2.0; Front end 1xUSB 3.0, 1xUSB 2.0
PCIe interface	1xPCI Express x16 slot 3.0, 1xPCI Express x1 slot
Wireless interface	1xWiFi interface (compatible with PCIe protocol)
Onboard sound card	Realtek ALC897
Onboard network card	Realtek 8111H Gigabit Chip
Power socket	Mainboard powered by 24 pins, CPU powered by 8 pins
Fan pin	2x4 needles 1x3 needles
Number of power supply phases	6-phase power supply
ARGB needle arrangement	4xARGB 5V3 p
